WAVETERM

WaveTerm  is a service-oriented software tool that was developed by RGI and helps to set up and manage parameters in order to check the flow system consisting of FLOCON 21 evaluation unit and flow sensor DR-xxx and to configure the sensor for optimal performance.

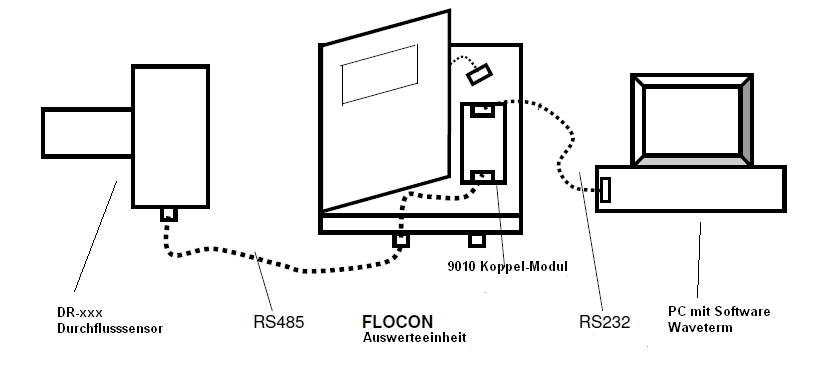

Scheme ... >>>



FLOCON 21
Controller for bulk flow measurement
more ... >>>

DR-xxx
Microwave flow sensor
more ... >>>

With  the help of this service software, extensive settings, displays and checks can be made on the DR-xxx on the PC:
● Check the parameters of the communication connection
● Communication between PC and DR-xxx sensor head
● WaveTerm Control Display with graphics
● DR-xxx sensor configuration
● Measurement of the t-signal and the f-spectrum
● Start a sampling measurement
● Data acquisition (numerical)
● Saving / calling / deleting the measurement data
● Fixed and variable graphic scaling
● Average spectrum display (continuous flow)
● Monitoring the trend of the raw signal
● Display of the raw data signal and the status of the DR sensor
● Simulation of the signal output from the DR sensor
● Sinus test signal
● Spectrum data of a real flow signal
● Average spectrum of a typical flow application

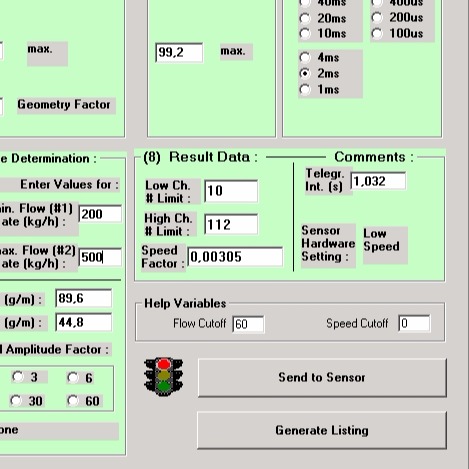

● Parameter calculation
● Calculation flow chart of the parameters
● Upload of the parameter and calibration curve from FLOCON 21 to PC
● Connection establishment and data transmission
● Calibration curve diagram and evaluation
● Selection of useful calibration points
