Product specification

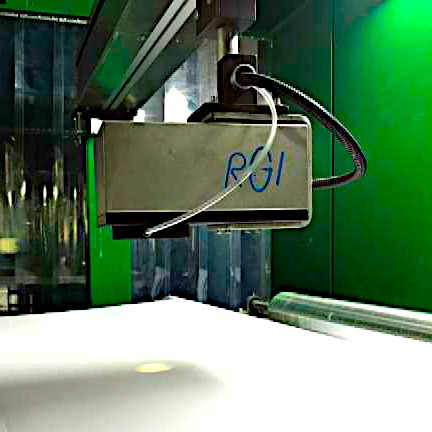

Online-IR-moisture measurement

Description

● Highly stable measuring system, thanks to double-beam optics: avoids any drift of the analyzer.
● Regardless of:
- temperature
- particle size
- measurement distance
● High speed measurement with a large detection area
● Quick and easy installation thanks to the supplied calibration tables and simple expansion
● The measuring principle allows the moisture of virtually every product to be measured.
● The accuracy is better than 1% in any case and can be up to 0.1% depending on the application.


RGI-XIR
PC evaluation software
more ... >>>

Technical data

Measuring system:
● Infrared reflection with 4 wavelengths
● Double jet system (reference and product)
● Detection area 60 mm diameter in 200 mm
● Measuring distance 120 to 300 mm (180 mm typical)
● Measuring frequency 1 measurement in 12.5 ms
● Linear or exponential averaging time 0.1 to 180 s
● Calibration 31 calibration curves saved

Connections:
● Analog output 0 (4) -20 mA +/- 0.2% 500 ohm load
● Communication 2 RS485 ports (e.g. PC and display)
● 24 VDC (22V to 28V) / 35 VA supply

Miscellaneous:
● Working temperature 0 to 40 ° C
     <40 ° C with air cooling
     > 50 ° C with water cooling
● Dimensions 130 x 149 x 277 mm
● Weight 5 kg
● IP65 housing

RGI

Advantages of online IR moisture measurement technology

● high measurement accuracy, non-contact measurement, more precise measurement results.
● extremely strong white light with transparency and full spectrum, so that it can penetrate up to 12 mm below the surface for measurement
● Wavy design of the sensor surface increases the surface and thus allows extremely fast heat dissipation from the sensor
● With anti-vibration 2 environments with fixed reflection, the measurement results are not influenced by vibrations in the working environment
● Easy maintenance of the online infrared moisture meter - good customer service and excellent quality
● In electronics, high-quality high-speed processing and digital amplifier ICs, high-precision motors and filters are processed
● The integrated software is intelligent and has a status display
● The probe is made entirely of cast aluminum and can be equipped with an air cooling device
● Any damage to the material has no influence on the surface color and composition of the material.
● Simple principle and advanced technology
● 100% of the infrared rays are radiated onto the material
● Total amount of effective energy is improved
● The system is not easily influenced by color, surroundings, dust and distance
● The generated IR light is not affected in energy and wavelength

Application areas

Tobacco industry:
Silk production, flakes, pressing of leaves, swelling, moistening, filling of cigars, grinding of tobacco.

Metallurgy (mineral) industry:
Sinter mixture, coal powder, coke powder, peat, copper ore, nickel ore, bauxite, ore, bentonite.

Chemical industry:
PVB film, PVC powder, rubber shavings and additives, acetate fiber, soda, detergents, fertilizers, laminated glass, pharmaceuticals, sodium benzoate, etc.

Food industry:
Corn starch, sugar, coffee, chocolate, tea, potato starch / puree / chips, animal feed, milk / cocoa powder, cookies, pulp, alfalfa, sweet almonds, puff foods, various dehydrated foods, beans, etc.

Wood and paper industry:
Wood, sawdust, cardboard, fiberboard, paper, corrugated cardboard, printing paper

Construction industry:
Soil, brick, plasterboard, gypsum powder, ceramic raw materials, tiles, cement, sand.

In  addition to the above There are numerous other areas of application: textile industry, glass fiber production, glue production, etc.

That's what makes RGI products so special

User friendly

● simple, intuitive teaching
● retrofitting
● no contact with the material to be measured
● Measurement independent of:
- medium
- process conditions

Safety and quality

● Maintenance-free because there is no wear
● high operational reliability
● Long-term stable measurement
● Recalibration is not necessary
● Checks before delivery:
- Quality, climate and function

"Made in Germany"

● own development and production in Germany
● Use of high quality materials and components
● Use of proven technology
● Worldwide sales and on-site service by trained personnel
