As a component of radiometric measuring systems, radioactive sources that emit gamma radiation must ensure that the radioactive material is enclosed in an extremely resistant capsule, which is absolutely leak-proof, which guarantees safe and long-term use even under extreme environmental conditions.
Shields from RGI - made of steel (stainless steel), filled with lead (tungsten or both) - therefore offer the best shielding at all times, even during transport or maintenance, because the shielding or the radiation channel remain closed until the measurement is put into operation.
The shielding containers ABSxx and SH-xx are radiation source containers, which consist of a stainless steel housing filled with lead.
The corresponding radiation source - a metal capsule made of sintered radioactive material - is fixed in the radiation outlet channel of the shielding container by means of a radiator holder.
Shielding containers of the ABSxx type are used as spotlights in various applications (e.g. density, limit level).
Shielding containers of the SH-xx type are only used for radiometric belt scales due to their special design with a fan-shaped beam.
For industrial applications must be used so-called enclosed radiation sources.
The radioactive substance is used in one or more tightly welded stainless steel capsules. which is then installed in a shield
This shielding must meet these requirements:
● The radiation that is still to be measured outside the container must be reduced to a value that is harmless to the operating personnel.
● The beam exit channel must be securely closable for transport, assembly and maintenance work.
● The protection of the built-in radiation capsule against mechanical damage, environmental influences and unauthorized removal must be guaranteed permanently.
The shielding containers from RGI Industzriemessgeräte GmbH offer the optimal solution in terms of shielding effectiveness and cost efficiency.
Our shields (stainless steel, filled with lead) guarantee the best shielding effect in every situation: during transport, assembly and maintenance work, the shutter remains active until the measurement can be started up, so that no radiation escapes and thus safe handling of the radiation source is guaranteed.
Only when the shield or closure device is open can the radiation be directed onto the detector through a defined radiation channel.
The dimensions of the shields are specially adapted to the respective measurement conditions or dose rate requirements.

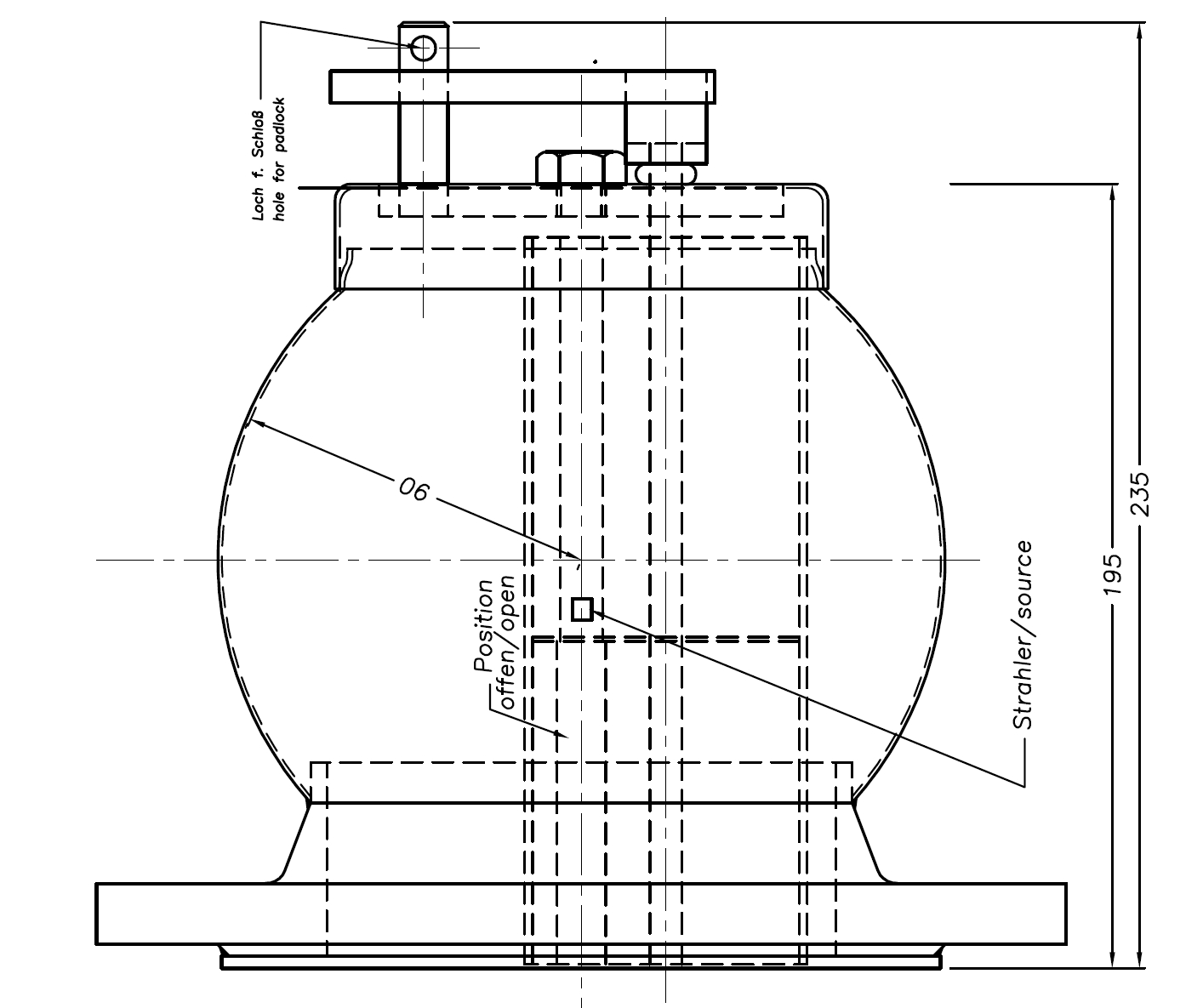

schematic view ABSxx

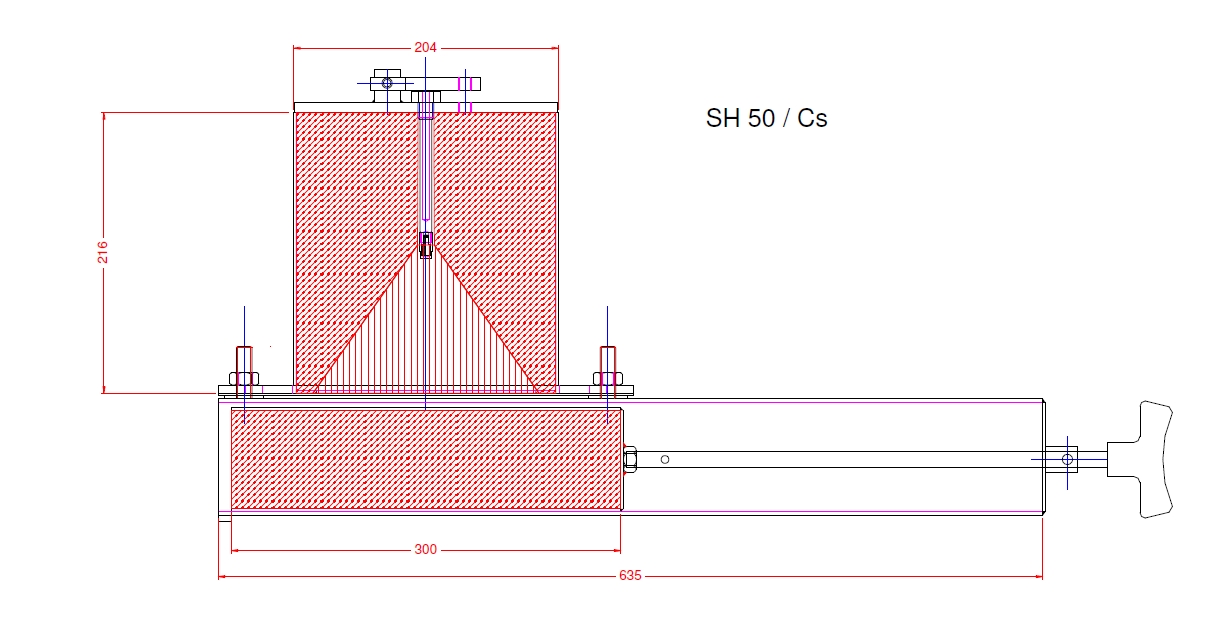

schematic view SH-xx
● simple, intuitive teaching
● retrofitting
● no contact with the material to be measured
● Measurement independent of:
- medium
- process conditions
● Maintenance-free because there is no wear
● high operational reliability
● Long-term stable measurement
● Recalibration is not necessary
● Checks before delivery:
- Quality, climate and function
● own development and production in Germany
● Use of high quality materials and components
● Use of proven technology
● Worldwide sales and on-site service by trained personnel
